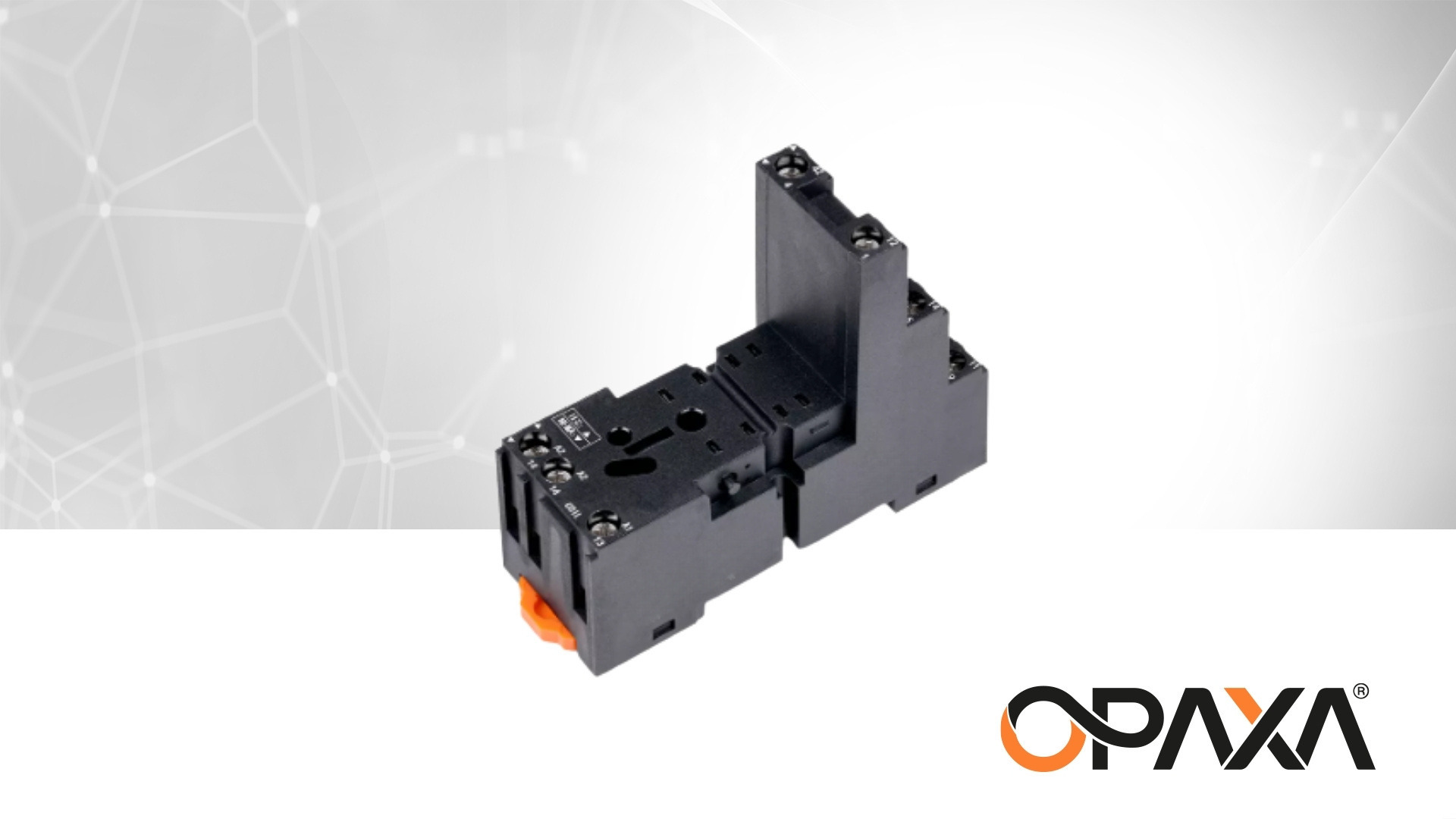

ER2P-8PS 2-Contact Plug-In Relay Socket

Industrial Relays Plug-in Relays

The ER2P-8PS 2-Contact Plug-In Relay Socket provides functionality with compatibility with many brands of relays.

Add to Comparison List

The ER2P-8PS 2-Contact Plug-In Relay Socket is a relay socket solution suitable for rail mounting. It offers a balanced product option for users seeking organized mounting, reliable operation, and standardized product performance in their projects.

This model, coded ER2P-8PS, is compatible with relays powered by 12VDC, 12VAC, 24VDC, 24VAC, 48VDC, 48VAC, and 220VAC coils.

The ER2P-8PS 2-Contact Plug-In Relay Socket can be used with the following relays for the most accurate product matching:

Features	Unit	ER2P-8PS	ER4P-14PS
Rated Load (Current)	A	12	10
Rated Load (Voltage)	V	300	300
Dielectric Strength (Between Coil and Contact)	V/min	4000	4000
Dielectric Strength (Between Contacts)	V/min	2500	2500
Max. Tightening Torque	Nm	1.0	1.0
Cable Cross-Section	—	AWG/mm² 20-14 / 0.5-2.5	AWG/mm² 20–14 / 0.5– 2.5
Ambient Temperature	°C	-40 ~ +85	-40 to +85
Unit Weight	g	50	56
